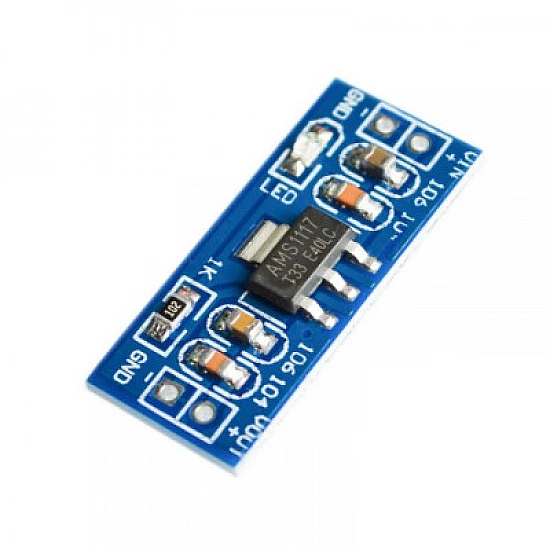

AMS1117 3.3V Power Supply Module

This power supply module is based on the AMS1117 3.3V regulator. It is capable of regulating a wide range of input voltage (4.0 to 12V) down to a fixed 3.3V output at up to 1A (Vin = 4.5V). Standard 0.1″ header pins provide a means of connecting to its input and output terminals.

These header pins have also been conveniently placed so that the module can be inserted face down into standard.

Features:

• Onboard AMS1117 chip.
• Onboard power indicator to indicate power is turned on: Red LED.
• Output voltage interface, connection to facilitate the experimental.
• Specially designed two pin mounting holes, can be directly fixed on the whole expansion board for experiments.
• Small Compact Size, 4Pin Type, Breadboard Friendly.
• 2P single row pins input and output for easy connection.
• Dual-panel design, the layout is nice.

Package Includes:

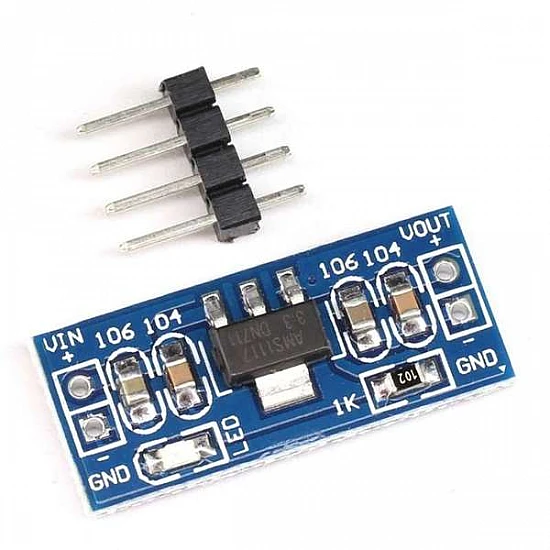

1 x AMS1117 3.3V power supply module (Unsoldered).
