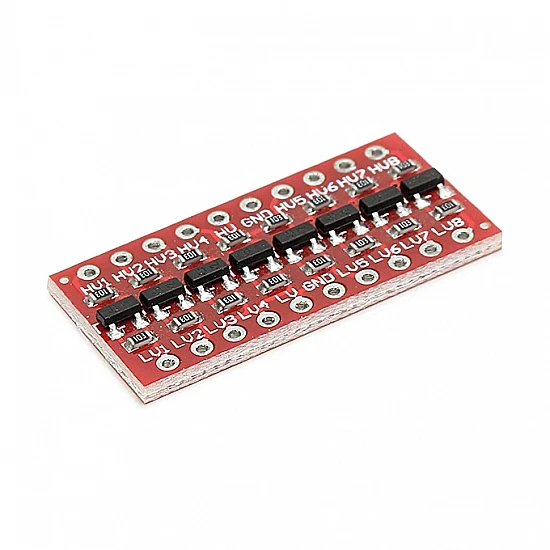

8 Channel Bi-Directional Logic Level Converter Module

8 Channel Bi-Directional Logic Level Converter Module is a Bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel.

Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. The level converter is very easy to use. The board needs to be powered from the two voltage sources that your system is using. High voltage (5V for example) to the ‘HV’ pin, low voltage (3.3V for example) to ‘LV’, and ground from the system to the ‘GND’ pin.

Features:

• Portable, small, easy to use.

• Comes with 2 rows of 6pin, unsoldered.

• The compatible breadboard can be directly inserted in the breadboard.

• It can bidirectionally transfer with 8 channels between high logic voltage and low logic voltage.

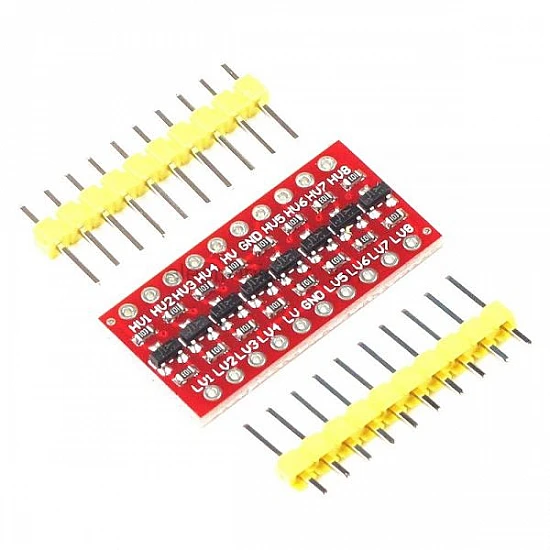

Package Includes:

1 x 8 Channel Bi-Directional Logic Level Converter Module.

2 x 1*10 pin Burg Connector.
