6 in 1 CP2102 USB to TTL RS232 USB TTL to RS485 Mutual Convert Module

Features:

• CP2102 core chip: CP2102 USB to serial chip in the best quality, most stable, far more than the performance of cheap similar chips, such as PL2303, FT232, CH341,and so on. High-speed, reliable, stable is the CP2102 to USB-to-serial module in the leading sales of important reasons.
• Ultra-small size: the circuit board is only 3.1cm X 1.8cm. Ultra-small size, less than the size of a USB disk, only takes up the width of a USB port, even in those two USB ports is a very tight distance of the laptop can also easily placed two.
• 3.3V and + 5V compatible: This product supports 3.3V voltage. Now many high-end single-chip, such as ARM, STM32, DSP, etc. are used 3.3V voltage. Other modules are only 5V-compatible, and they do not have a 3.3V voltage output.
• Power output: the module can be supplied to the SCM system to facilitate debugging. 5V-500mA or 3.3V-100mA.
• Over-current protection: On-board self-recovery fuse, even if the positive and negative short circuit will not damage the circuit board or computer. If a short circuit or current exceeds 500mA, the fuse will automatically disconnect, until the circuit returns to a non-short circuit when the fuse back to normal. Effective protection of your computer's security.
• Transceiver Indicator: When there is data on the transmission line or the receiving line of the serial port, the receiving and sending indicator on the board will light to facilitate debugging.
• TTL level interface: can be directly connected to a single chip or other embedded devices, such as 51, STC, AVR, ARM, FPGA, etc., without conversion.
• RS232 level interface: Connect the computer or Rs232 level serial device.
• RS485 level Interface: automatic transceiver control, no need to send and receive control lines, the default receiving state, send data to send the line to send the state.

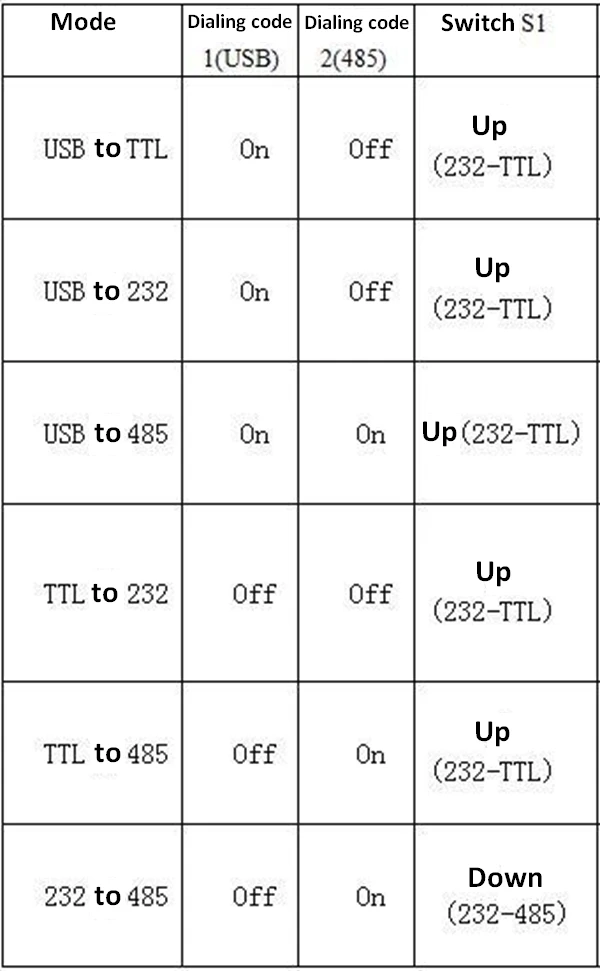

• Four levels of free mutual transfer: a unique circuit design, USB, TTL, RS232, RS485 free transfer each other, through the switch to achieve physical switching, convenient and reliable, non-interference.
• High-speed communication: baud rate up to 2Mbps.
• DTR, RTS signal: the module leads to the serial port DTR, RTS signal multi-function, supports MSP430 MCU BSL download.
• Machine chip, industrial-grade chip: This module adopts the whole machine chip process technology, quality, nd cheap manual patch welding quality difference, stable and reliable guarantee.

Package Includes:

1 x 6 in 1 CP2102  USB to TTL RS232 USB TTL to RS485 Mutual Convert Module
