5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module

5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
5V 2A Charge and Discharge 3.7V 4.2V Lithium Battery Boost Module
₹62
10 or more ₹55
50 or more ₹52

(Excluding 18% GST)

CD42 5V 2A Charge and Discharge  3.7V 4.2V Lithium Battery Boost Module, when using a lithium battery, its charge, and discharge need circuit protection to protect the lithium battery from being charged or damaged or to obtain a safe power supply from the lithium battery. The module has four LED indicators to indicate the current power of the lithium battery.

Features:

  • Low-level trigger
  • Over-current, over-voltage, short circuit protection
  • The module comes with a lithium battery protection function.

Package Includes:

1 x 5V 2A Charge and Discharge  3.7V 4.2V Lithium Battery Boost Module

Technical
Charging Current

0-2.1A

Discharge Current

0-2.4A

Input Voltage

4.6V-5.5V DC

Operating Temperature Range

-20°C to +85°C

Output Current

0-2.4A

Output Voltage

5V

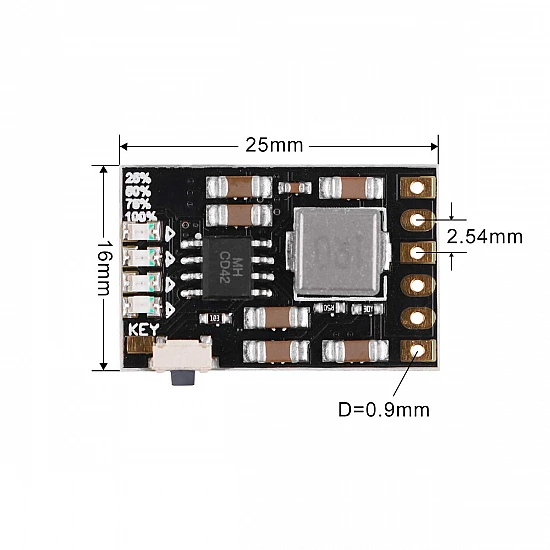

Dimensions (LxWxH)

25x16x4mm
