4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable

This Product is available in Ahmedabad - India Warehouse .

Approx Delivery Time is 2-5 Days.

Stock: In Stock
Brand: Import Dukan
SKU: ID-07-431

Based on 0 reviews. - Write a review

₹172

7 or more ₹158

30 or more ₹154

(Excluding 18% GST)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

BMS stands for the battery management system. This is a BMS with a 30A current and14.8V 16V voltage rating to charge 4 cells of Li-ion cells. The module comes with overcharge protection, over-discharge protection, short circuit, and over current protection features.

A Balance Board for Drill Motor Lipo cell module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.

Features:

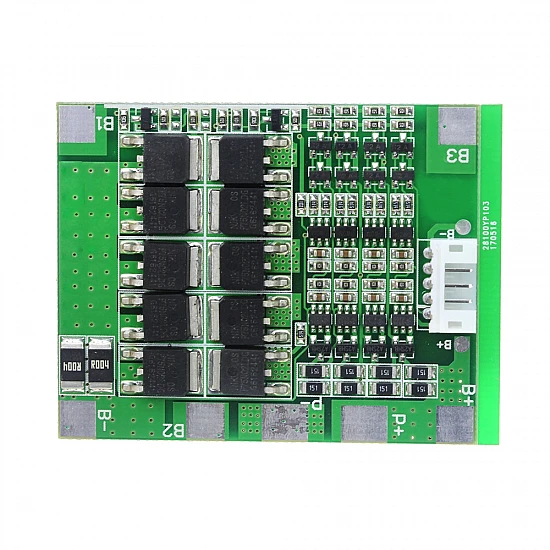

Four series of lithium battery protection board
Overcharge protection,
Over-discharge protection function,
Short circuit protection function,
Overcurrent protection function.

Package Includes:

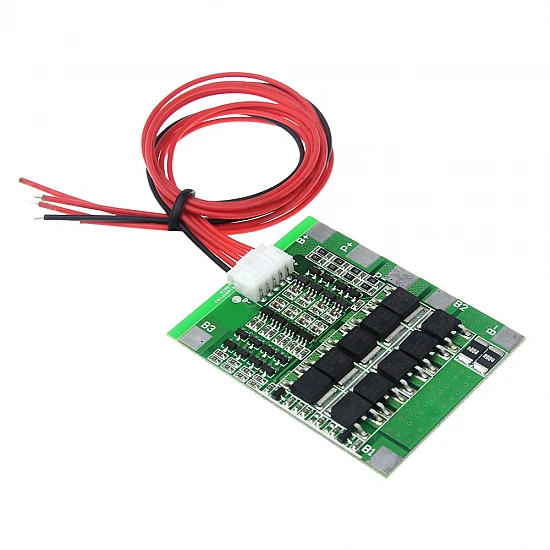

1 x 4S 30A 18650 Lithium Battery Protection Board

1 x Battery Connecting Cable

Technical
Balanced current	60mA
Operating Temperature Range	-30°C to 80°C
Over Current Detection Delay Time	500 ms
Over current	60A
Over-discharge detection voltage (V)	2.55±0.08 V
Overcharge detection voltage (V)	3.9+ 0.05 V
Product Type	BMS charger module
Working Current	30A
Dimensions (LxWxH)	56mm x 46mm x 3.5mm
