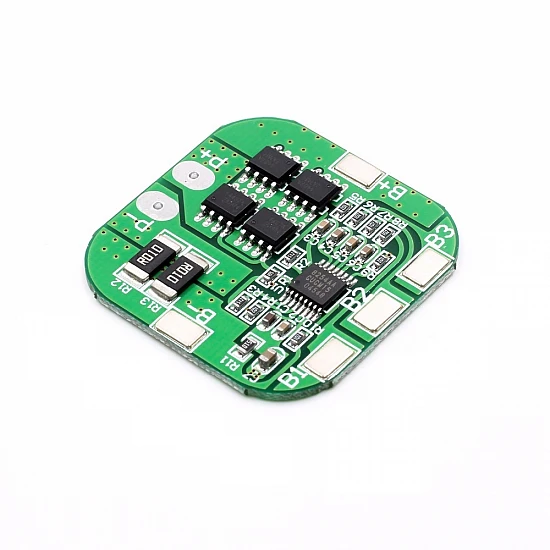

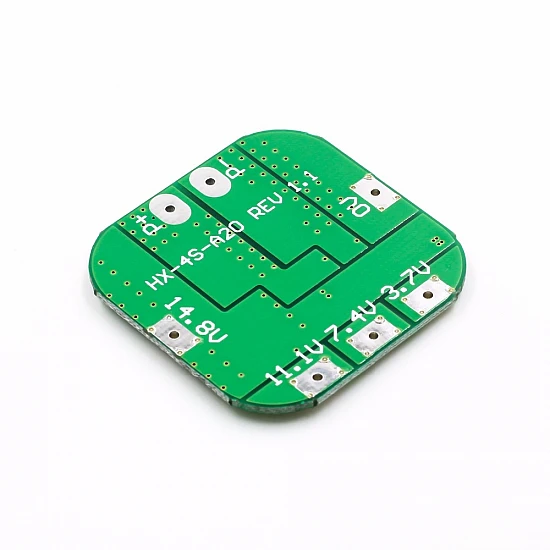

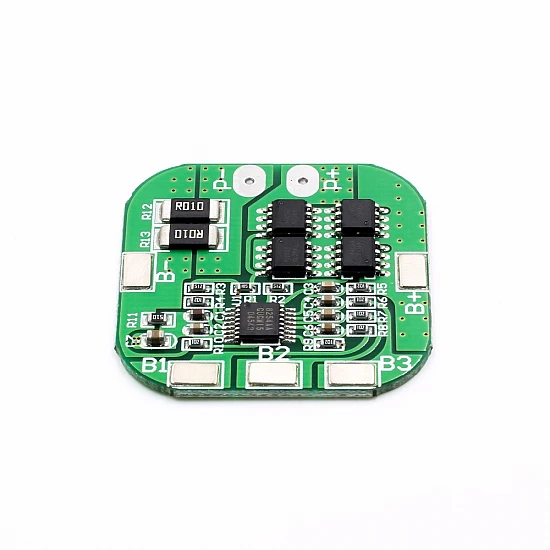

4S 20A Li-ion 18650 BMS Lithium Battery Protection Board

4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
4S 20A Li-ion 18650 BMS Lithium Battery Protection Board
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹90
10 or more ₹85
50 or more ₹82

(Excluding 18% GST)

BMS stands for the Battery Management System. This is a BMS with a 20A current and 14.8V voltage rating to charge 4 cells of Li-ion cell. The module comes with overcharge protection, over-discharge protection, overcurrent protection, and short circuit protection.

Features:

  • Four series of lithium battery protection board
  • Overcharge protection,
  • Over-discharge protection function,
  • Short circuit protection function,
  • Overcurrent protection function.
  • A high-accuracy voltage detection circuit.

Package Includes:

1 x 4S 20A Li-ion 18650 BMS Lithium Battery Protection Board

Technical
Battery

4 Cell

Operating Temperature Range

-40°C to 50°C

Over-discharge detection voltage (V)

2.3-3.0V±0.05V

Overcharge detection voltage (V)

4.25-4.35V±0.05V

Peak Current

Max 20A

Resistance

45mΩ

Small Current

6uA

Working Current

Max 10A

Length

34 mm

Height

3 mm

Width

34 mm
