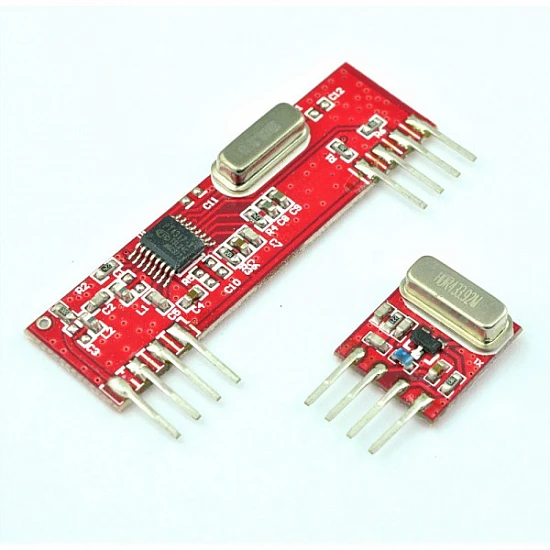

433 MHZ RF MODULES TX & RX PAIR

433 MHZ RF MODULES TX & RX PAIR - Sensor - Arduino
433 MHZ RF MODULES TX & RX PAIR
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹147
7 or more ₹133
30 or more ₹126

(Excluding 18% GST)

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost. This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The RX – ASK is an ASK Hybrid receiver module. The RF Transceiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size, and simple to use for designing.

Note: This device will not support direct UART communication when connected to PC or microcontrollers as there is a lot of noise always available on these frequencies.

Features :

  • Low Power Consumption

  • Low Current Consumption (Typ 11mA)

  • Wide Operating Voltage (1.5-5v)

  • Easy For RF-based Application

  • Complete Radio Transmitter

  • CMOS / TTL Input

  • No Adjustable Components

  • Very Stable Operating Frequency

  • ASK Modulation

Specifications:

  • Range in open space(Standard Conditions) : 100 Meters

  • TX Frequency Range: 433.92 MHz

  • TX Supply Voltage: 3V ~ 6V

  • TX Output Power: 4 ~ 12 Dbm

  • RX Receiver Frequency: 433 MHz

  • RX Typical Sensitivity: 105 Dbm

  • RX Supply Current: 3.5 mA

  • RX IF Frequency: 1MHz

  • RX Operating Voltage: 5V

Applications :

  • Wireless Security System

  • Car Security System

  • Remote Controls

  • Automation System

  • Sensor Reporting

  • Remote Keyless Entry

Package Includes:

1x 433 MHZ RF MODULES TX & RX PAIR

Technical
Operating frequency (TX)

433.92 MHz

Operating voltage (TX)

3V ~ 6V

Operating voltage(RX)

5V

RX IF Frequency

1MHz

Range

100 Meters in open space(Standard Conditions)

Receiver frequency

433 MHz

Sensitivity

105 Dbm

Dimensions (LxWxH)

TX-1.3x1.2x0.4 cm RX-1.3x4.5x0.4 cm
