3.5-5.5V Standard Passive Buzzer Module For Arduino

3.5-5.5V Standard Active Buzzer Module For Arduino

This Product is available in Ahmedabad - India Warehouse .

Approx Delivery Time is 2-5 Days.

Stock: In Stock
Brand: Import Dukan
SKU: ID-01-668

Based on 0 reviews. - Write a review

₹33

10 or more ₹29

50 or more ₹28

(Excluding 18% GST)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

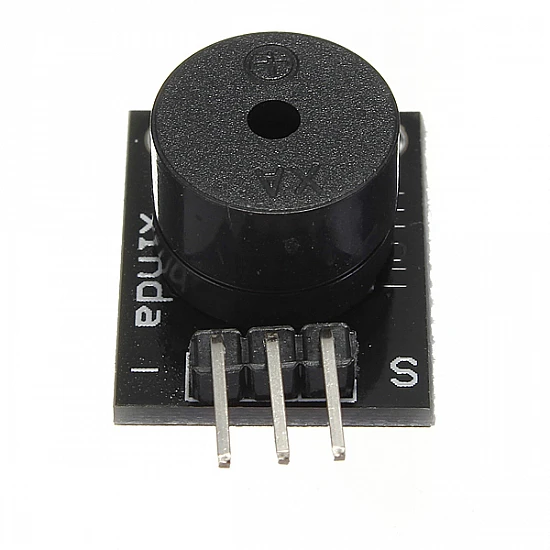

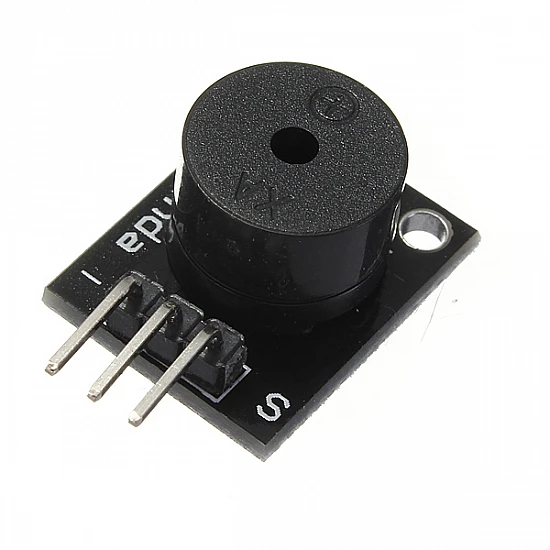

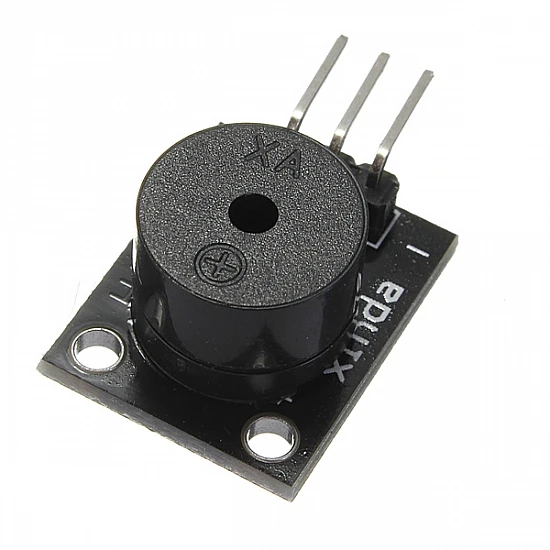

A Standard Active Alarm Module for Arduino is an audio signaling device, which may be mechanical, electromechanical, or piezoelectric. This PCB Mounted Active Buzzer Module can produce a range of sound tones depending on the input frequency, i.e it can generate tones between 1.5 to 2.5 kHz by switching it on and off at different frequencies either using delays or PWM.

An active buzzer rings out as long as it is electrified. Compared with a passive buzzer, it is a bit expensive but easier to control. Typical uses of buzzers include alarm devices, timers, and confirmation of user input such as a mouse click or keystroke.

This module is ideally suited to adding noise to your project and is compatible with a pin pitch of 2.54mm while functioning with microcontrollers such as the Arduino. This module lets you respond to programmatic changes with a lovely annoying buzzer that can be altered over a range of frequencies to ensure maximum irritation. To operate the I/O pin must receive a square wave to trigger the buzzer. This can be produced within all popular microcontrollers.

Specification:

Working voltage: 3.5-5.5V
Working current: <25mA
PCB Dimension: 1.85 x 1.5 cm (L x W)

Feature:

An active buzzer with a concussion internal source- so long as it will be called an energized
The program easy to control- SCM can let a high-low sound- while passive buzzer did not.
The Transistor drive module uses 8550
With fixed bolt hole- easy installation- 2.6mm aperture.

Package included:
1 x Standard Active Buzzer Module

Technical
PCB Size ( L x W )	1.85 x 1.5 cm
Tone Generation Range	1.5 ~ 2.5kHz
Working Current	<25mA
Working Voltage	3.5-5.5V
Material	Plastic
