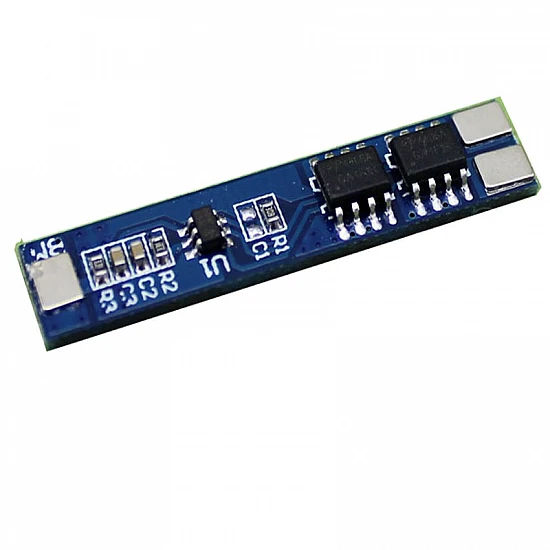

2S 7A 8V 18650 Lithium Battery Charger Board Protection Module BMS

2S 7A 8V 18650 Lithium Battery Charger Board Protection Module has the main IC using original “precision” imported components. With overcharge, over-discharge, over current, short circuit protection function, for a variety of different shapes of 3.7V capacity lithium batteries. Compact size, suitable for many requirements of high integration, low-cost occasions, can meet the performance requirements of many aspects, to ensure the absolute safety of the battery group.

Protections:

• Short circuit protection.
• Overcharge protection.
• Over-discharge protection.
• Over-current protection.

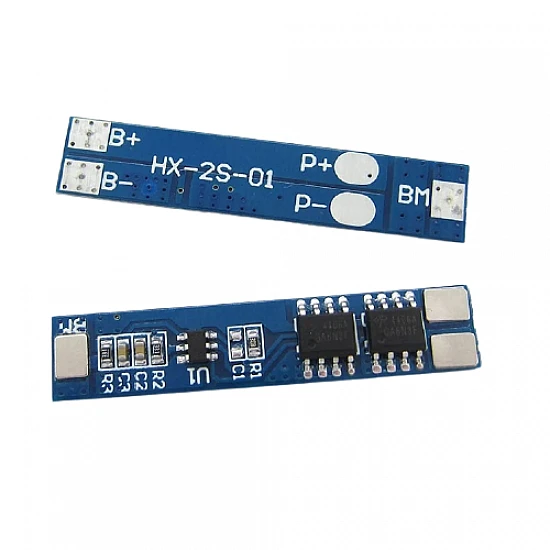

Connections:

• MB: The Common connection point between the batteries.
• B+: Battery V+ Positive.
• B-: Battery V- Negative.
• P+: Charging V+.
• P-: Charging V-.

Specifications:

• Maximum Working Current: 7A.
• Operating Temperature: -40-50℃.
• Internal Resistance: Less than 45m Ω.
• B+ B-: The interface of the battery core.
• P+ P-: The connector of the battery board.

Package Includes:

1 x 2S 7A 8V 18650 Lithium Battery Charger Board Protection Module.
