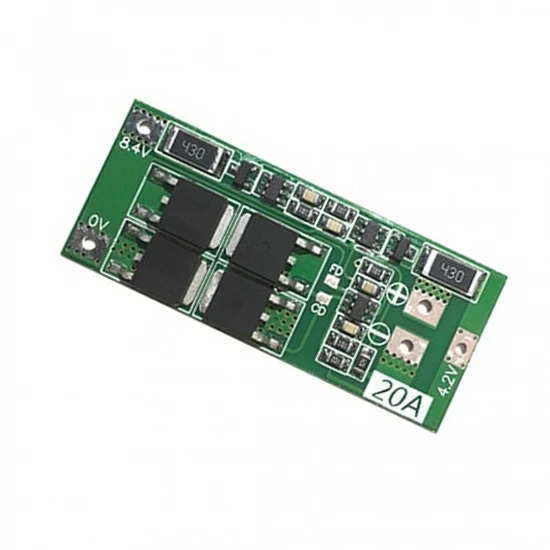

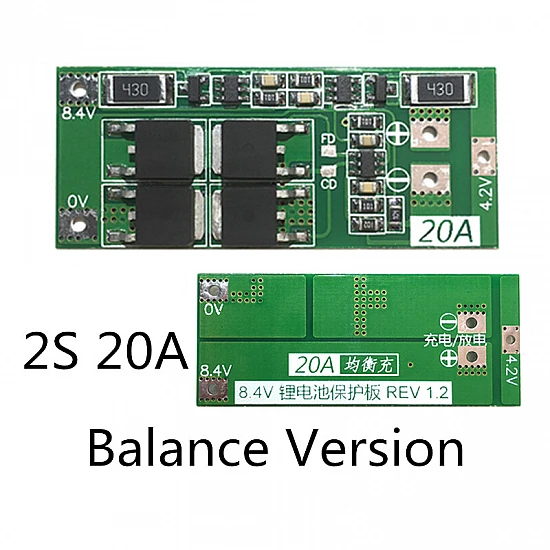

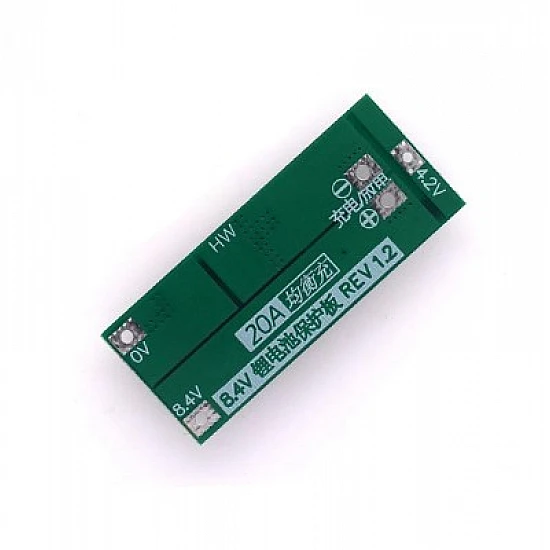

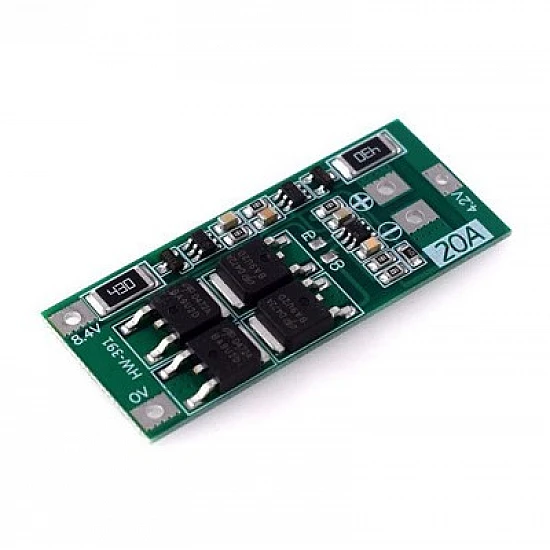

2S 7.4V 8.4V 20A 18650 Lithium Battery Protection Board with Balanced Version
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-07-441
₹54
10 or more ₹50
50 or more ₹48
(Excluding 18% GST)
This is a BMS with a 20A current and 7.4-8.4V voltage rating to charge 2 cells of Li-ion cells. Two batteries (18650) can be connected simultaneously to the charge-discharge controller module. The module has protection against short circuits, overcharge,s and over-discharge.
Features:
- Version: Balanced
- Applicable for lithium batteries with a nominal voltage of 3.7V and charge of 4.2V (including 18650, 26650, and polymer lithium batteries), can start-up current 25A, power less than 50W electric drill, or 168W resistive load.
Package Includes:
1 x 2S 7.4V 8.4V 20A 18650 Lithium Battery Protection Board with Balanced Version
Technical | |
Charging Voltage | DC 8.4-9V |
Continuous Charging Current | Max 10A |
Continuous Discharge Current | max 20A |
PCB Color | Green |
Length | 48 mm |
Height | 4 mm |
Width | 20 mm |
