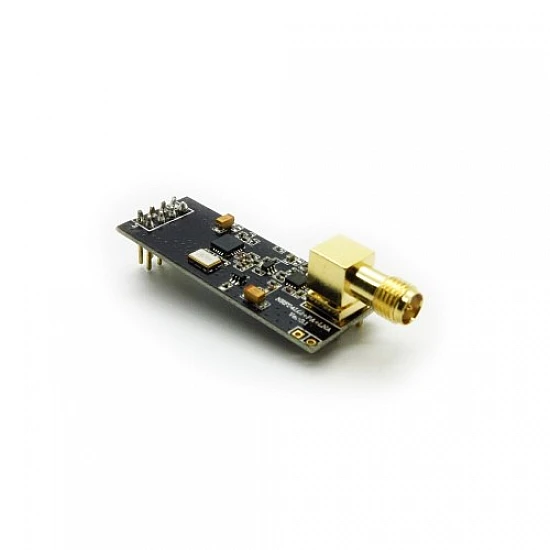

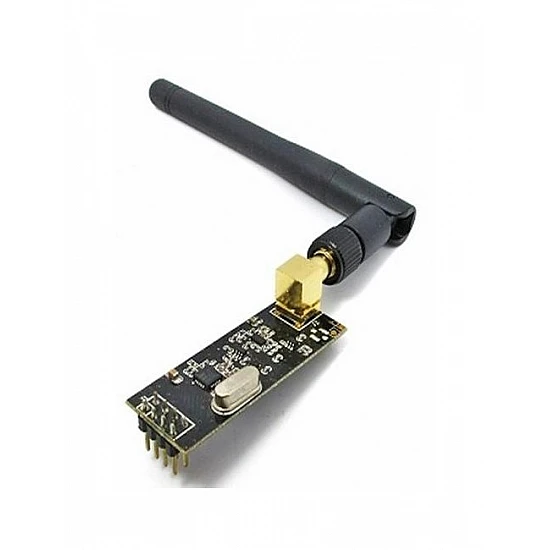

2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna

This wireless Transceiver module is an easy and suitable module if you want to set up your wireless communication system at a low cost!! It can achieve a good balance between wireless transition performance and cost! This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance.

You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! What's more, this nRF24L01+ module is designed with a Power amplifier and SMA antenna This allowed you to use the wireless communication up to 1000 meters! (No barrier)

Features:

• It uses 2.4GHz global open ISM band, license-free.
• 2Mbit/s speed makes high-quality VoIP possible
• Facilitate the development for customers, without development RF part.
• Support six-channel data reception.
• Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.

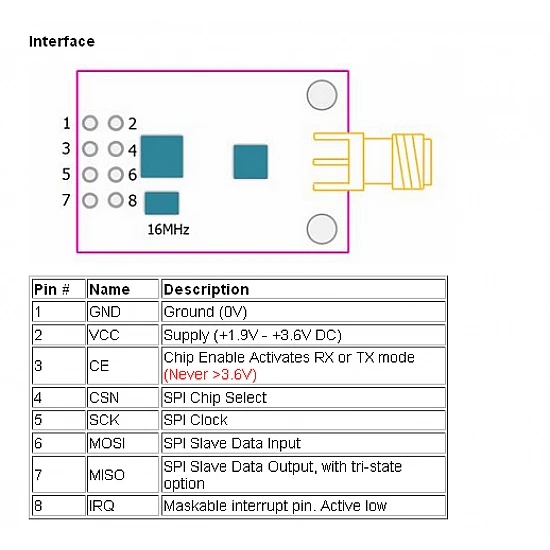

• SPI interface facilitates the communication with MCU I/O port.
• Transmit power is greater than +20 dBm.
• Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal;
• Software programming is fully compatible with NRF24L01 modules.

Specifications:

• PA growth: 20dB
• LAN growth: 10dB
• LAN noise figure: 2.6dB
• Antenna growth: 2dBI
• Max output power: +20 dBm
• Operating temperature: -20-70 degree
• Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
• Voltage: 3-3.6V
• Current in mode: 4.2uA
• Working current in receiver mode: 45mA
• Working current in transmit mode: 115mA

Package Content:

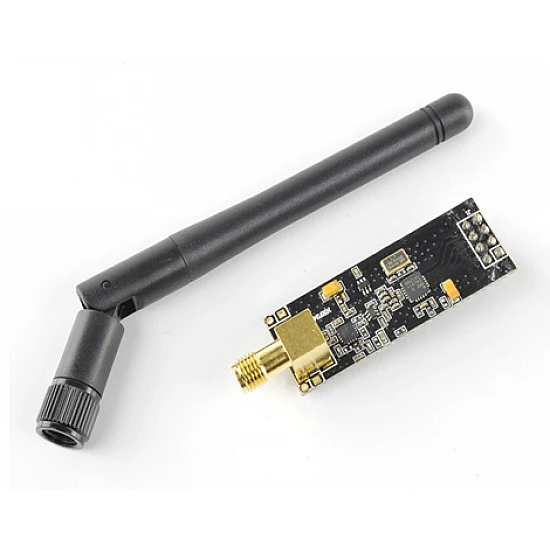

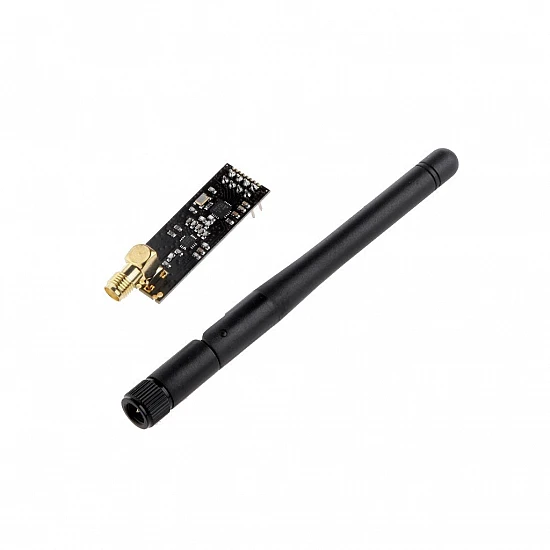

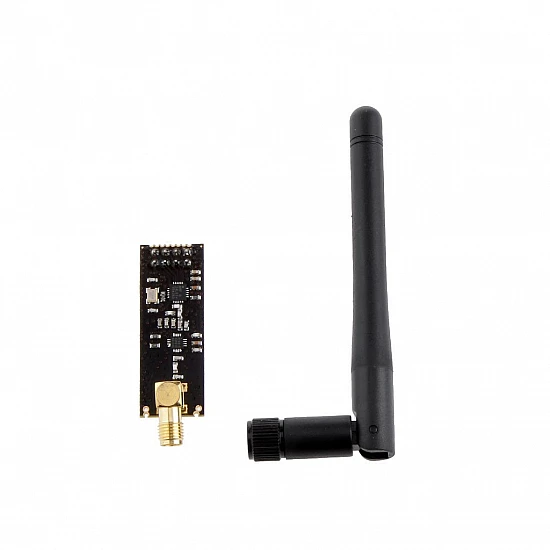

1 x 2.4GHz NRF24L01 Transceiver module.

1 x SMA Antenna.
