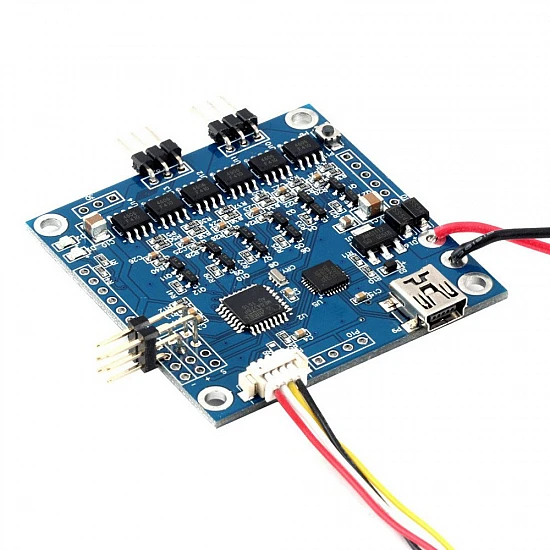

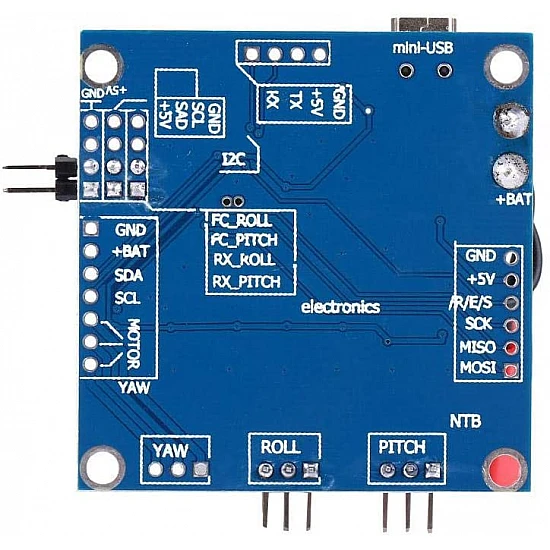

2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver

2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹1,318
5 or more ₹1,253
15 or more ₹1,217

(Excluding 18% GST)

2 Axis Brushless Gimbal Controller that you can use to control your brushless gimbal. This controller comes with an IMU board so you don't need to rely on a flight controller for stabilization. The board is based on the Martinez V3 gimbal design. It is best to use the open-source brushless gimbal firmware for this board, but the board is also compatible with AlexMos simple BGC firmware.

Features:

  • Two-axis brushless gimbal driver.
  • It adopts a MOS tube drive, with a larger current
  • Support 2-8 series gimbal motor
  • With IIC interface
  • Onboard USB for PC communication to configure and upgrade

Package Includes:

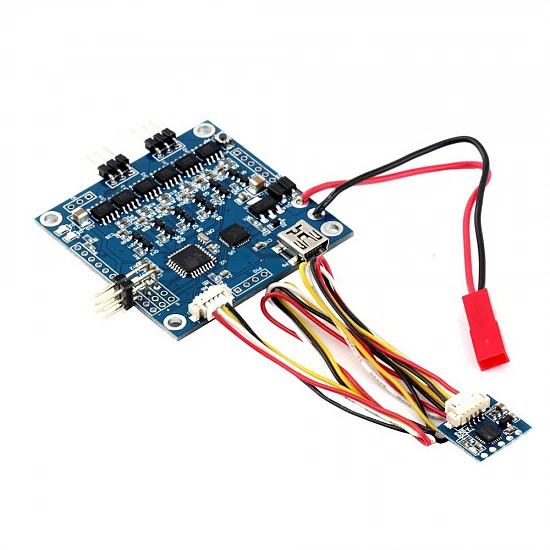

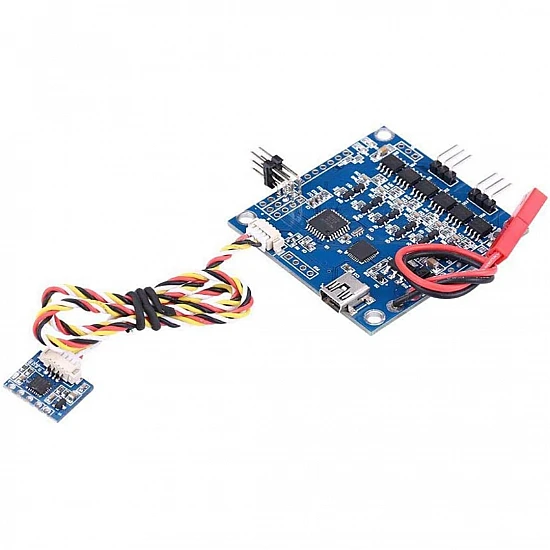

1 x 2-Axis BGC v3.15 MOS Large Current Brushless Gimbal Controller Driver.

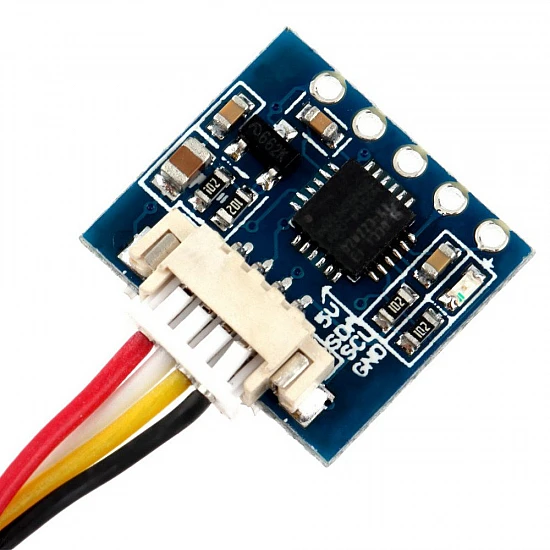

1 x Gyro sensor.

1x Cable

Technical
Input Supply Voltage

8 -18VDC

Interface Type

I2C

Max. Current to Each Motor

2.8 A

Overcurrent Protection

Yes

Peak Current

10A

Sensor

Supports MPU6050

Short Time Current to Each Motor

7.1 A

Stabilization Axis

2

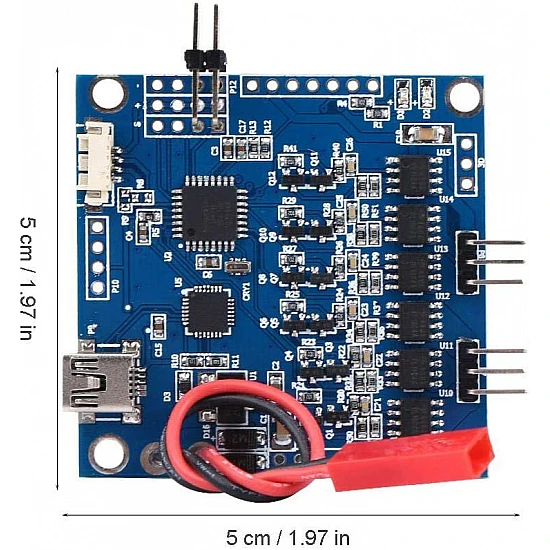

Length

52 mm

Width

52 mm
