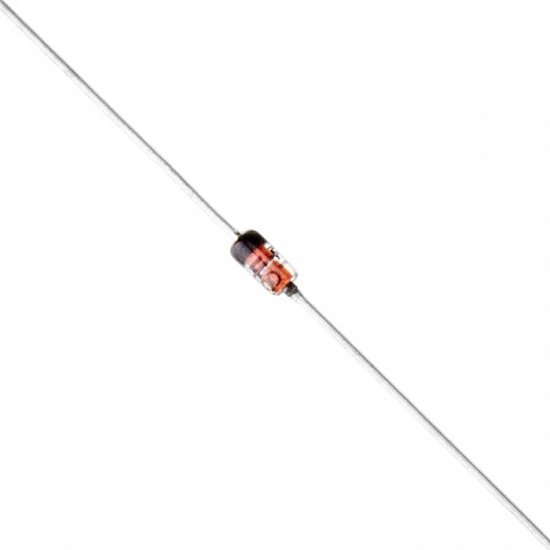

1N4148 Switching Diode Standard 75V 150mA Through Hole
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-05-674
₹3
10 or more ₹3
50 or more ₹2
(Excluding 18% GST)
The 1N4148 and 1N4448 are high-speed switching diodes fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.
Features:
- Voltage - DC Reverse (Vr) (Max):75V
- Current - Average Rectified (Io):150mA
- Voltage - Forward (Vf) (Max) @ If:1V @ 10mA
- Speed:Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):4ns
- Reverse Recovery Time (trr):4ns
- Capacitance @ Vr, F:4pF @ 0V, 1MHz
- Mounting Type:Through Hole
- Package / Case:DO-204AH, DO-35, Axial
- Supplier Device Package:DO-35
- Operating Temperature - Junction:-65°C ~ 175°C
APPLICATIONS:
- High-speed switching.
Package included:
1 x 1N4148 SWITCHING DIODE STANDARD 75V 150mA THROUGH HOLE
