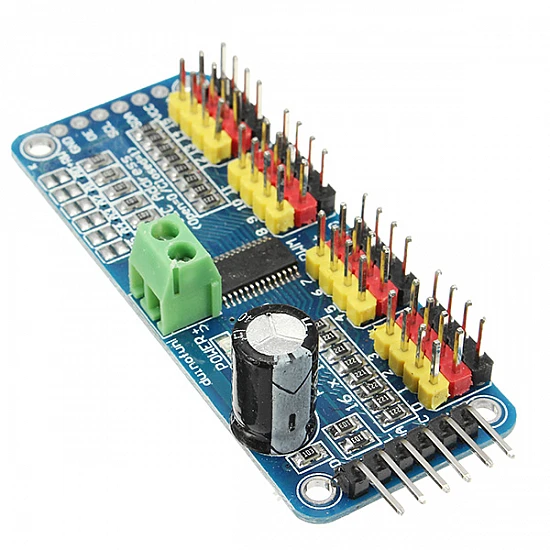

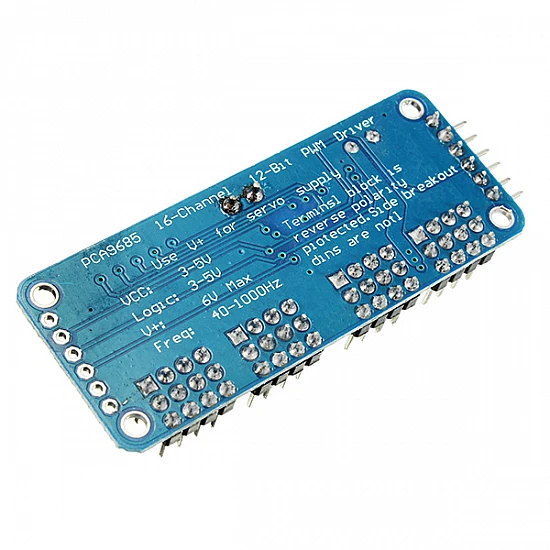

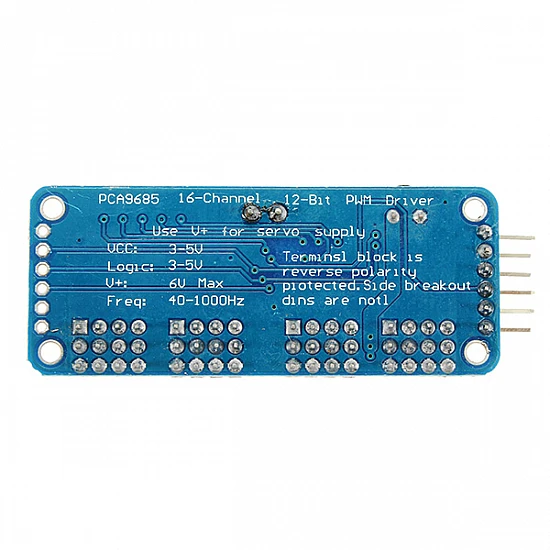

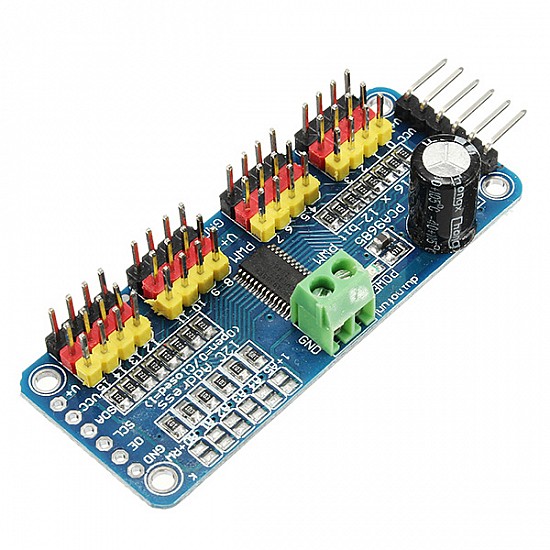

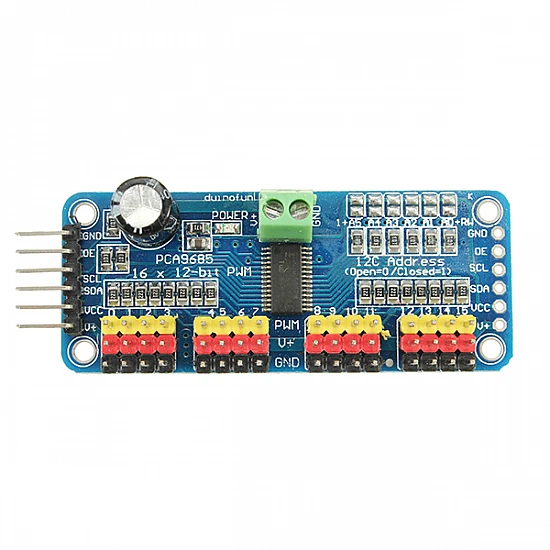

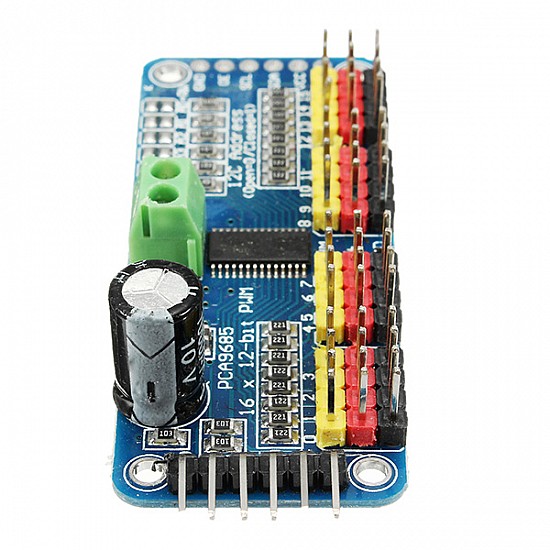

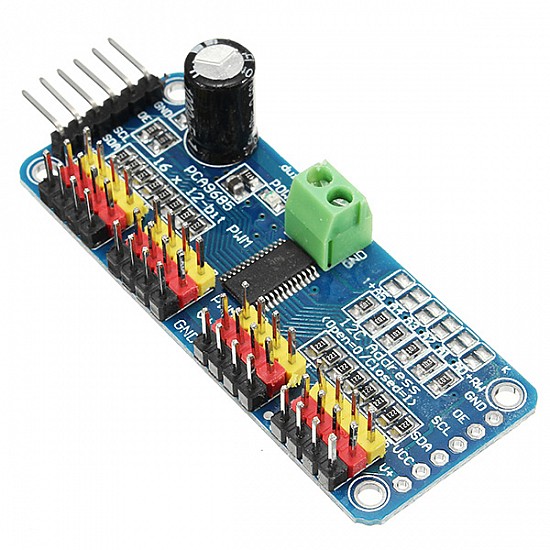

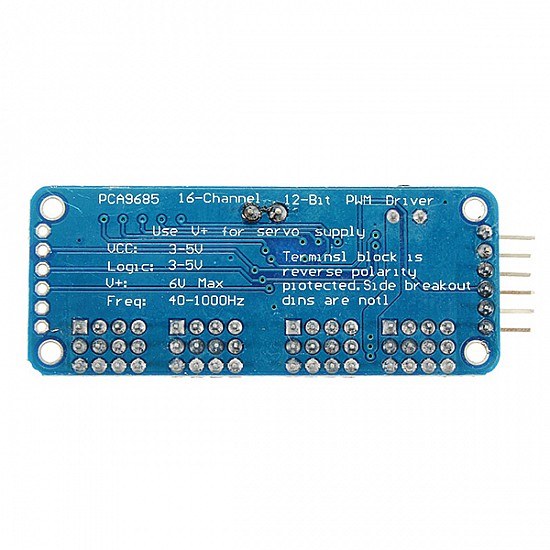

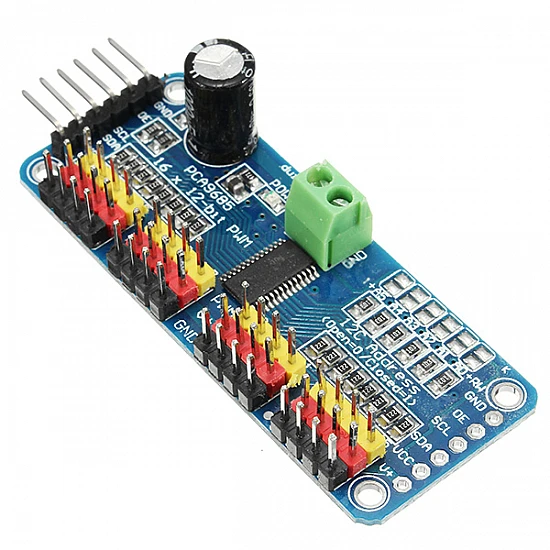

16 Channel PWM Servo Motor Driver I2C Module

This is 16 Channel PWM Servo Motor Driver 12C Module.

Features :

• Adjustable frequency PWM up to about 1.6 kHz
• 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate
• Configurable push-pull or an open-drain output
• The output enable pin to quickly disable all the outputs
• Terminal block for power input
• Reverse polarity protection on the terminal block input
• Green power-good LED
• 3 pin connectors in groups of 4 so you can plug in 16 servos at once
• Chainable design
• A spot to place a big capacitor on the V+ line
• 220-ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial.
• This board/chip uses I2C 7-bit address between 0x60-0x80, selectable with jumpers.

Package Includes :

1 x 16-Channel 12-bit PWM/Servo Driver
