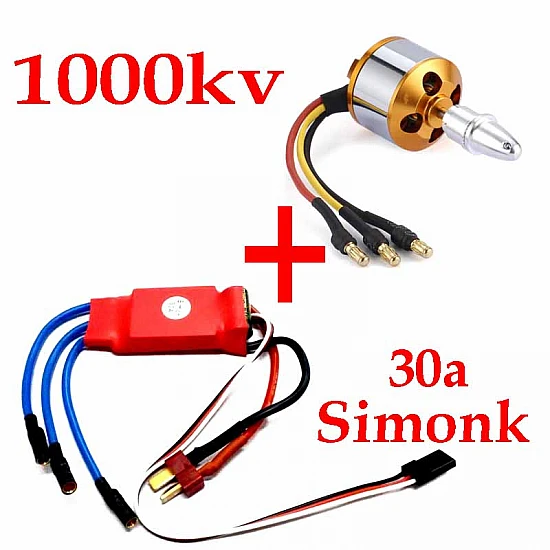

1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor

1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor - Brushless Motor - Multirotor
1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor - Brushless Motor - Multirotor
1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor - Brushless Motor - Multirotor
1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor - Brushless Motor - Multirotor
1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor - Brushless Motor - Multirotor
1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor - Brushless Motor - Multirotor
1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹646
5 or more ₹620
15 or more ₹606

(Excluding 18% GST)

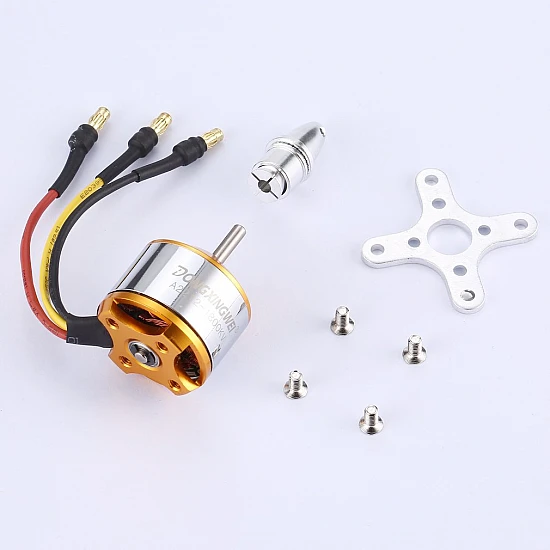

Motor:

Specifications:

  • Model NO.:  A2212
  • Dimension: 27.8*27mm
  • Shaft diameter: 3.17mm
  • Max Efficiency: 80%
  • Max Efficiency Current: 4-10A (>75%)
  • Current Capacity: 12A/60s
  • No Load Current @ 10V: 0.5A
  • No. Of Cells: 2-3 Li-Poly
  • Weight: 65g
  • KV: 1000
  • Suitable for the propeller size: 1045, 1047,1060, 9050

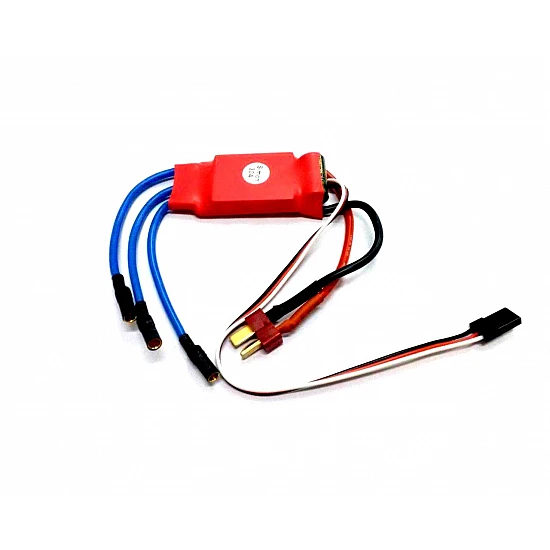

ESC:

Description:

Item Name:30A SimonK Procedure Brushless ESC

Input Voltage: (2-3S Lixx red)

Drive Current: 30A (Max: 40A/10S)

Size 50x23x8

BEC:5V/3A

Weight: 25g



Features:

1).This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use;

2).Highest efficiency 100% N-FET design;

3).Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's);

4).No low voltage cut off, because any cutoff in a multirotor = crash;

5).No over temp cutoff, because any cutoff in a multirotor = crash;

6).Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate;

7).16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal);

8).Super simple, foolproof operation! Nothing to program other than the throttle range;

9).It is suitable for rc helicopter and four axis plane.







Pakacge Included:

1 x  Simonk 30A Brushless ESC (with bullet connectors)
