1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver

1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹5,185
3 or more ₹4,801
10 or more ₹4,588

(Excluding 18% GST)

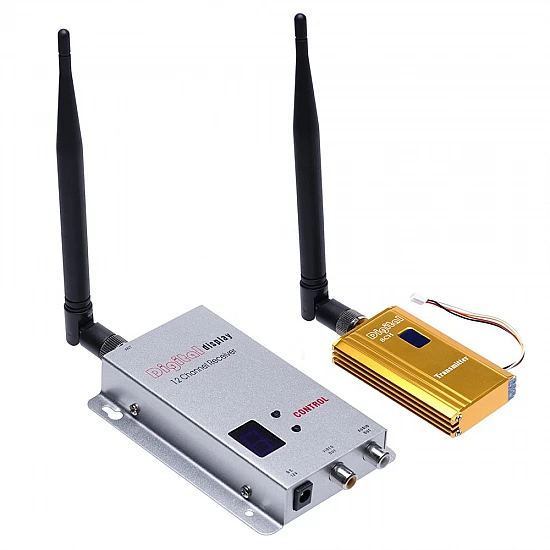

This is 1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver. It has the advantages of a long transmission range(range 80 meters building inside, open area will transmit farther), anti-interference, and high mobility. The transmitter and the receiver are used in the same channel in a pair.

Features:

  • It supports 12 receiving channels.
  •  It enables you to easily realize wireless sharing of HD AV data and enjoy unlimited hi-fi audio-visual effects.
  • It can transmit AV signals of DVD, DVR, CCD camera, IP TV, satellite set-top box, digital TV set-top box, and other similar devices by means of radio waves.

Specifications:-

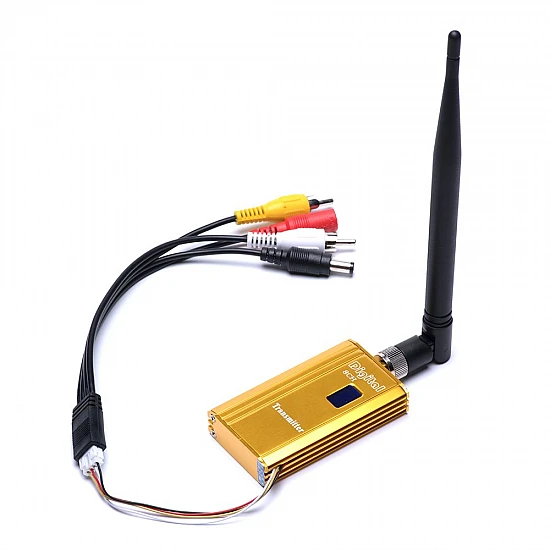

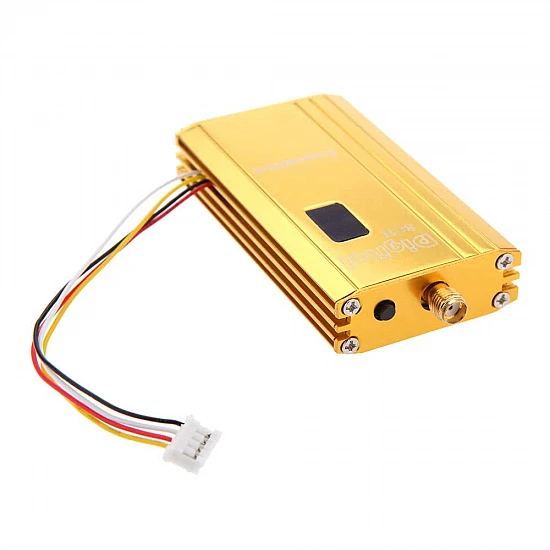

Transmitter:

  • Input Voltage:12V
  • Current: 500MA
  • Transmit power: 2W (2000mW)
  • Transmission distance (Open Space): 1km-5km(Theoretical distance)
  • Gain directional antenna: 5-20km
  • Transmitting Frequency:HC1:1080 HC2:1120 HC3:1160 HC4:1200 HC5:1240 HC6:1280  HC7:1320 HC8:1360(MHz)
  • Frequency control: digital frequency locked loop control, lock the lock point.
  • Dimensions: 73x41x14mm (LxWxH)
  • Weight: 115g

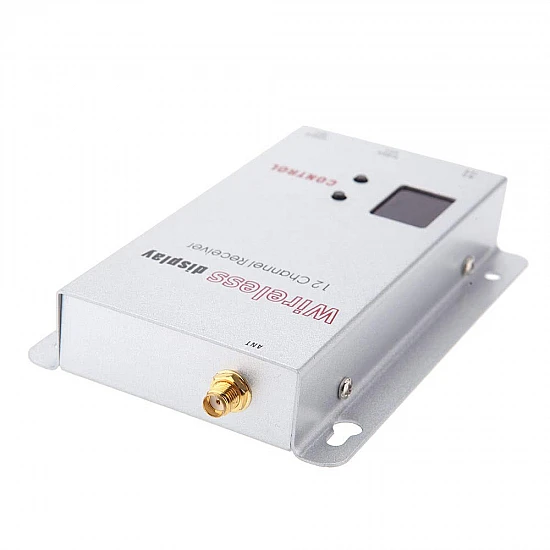

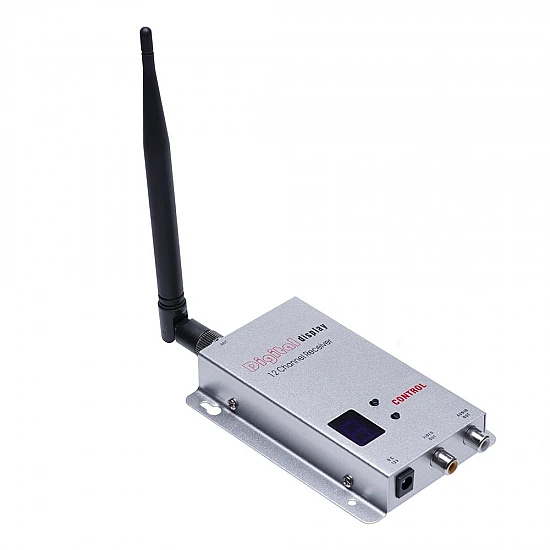

Receiver:

  • Voltage: DC+12V
  • Current: 2A
  • Reception frequency: 0.9~1.2GHz
  • The received signal: video, audio
  • Reception sensitivity: -85dBm
  • Video input level: 1Vp-p
  • Audio input level: 1Vp-p
  • Working humidity: 85%RH
  • Dimensions: 115x60x20mm (LxWxH)
  • Weight: 173g

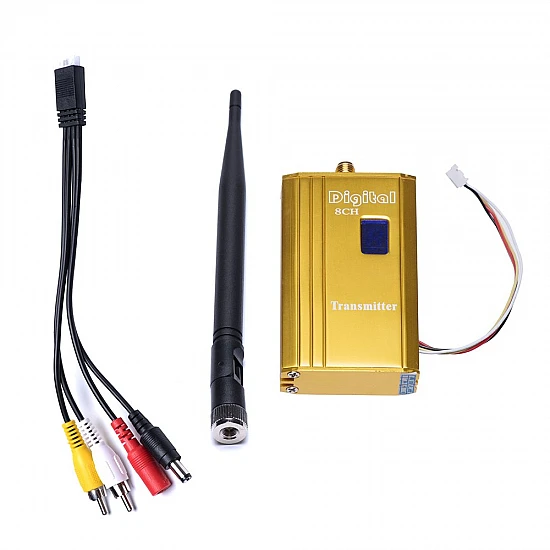

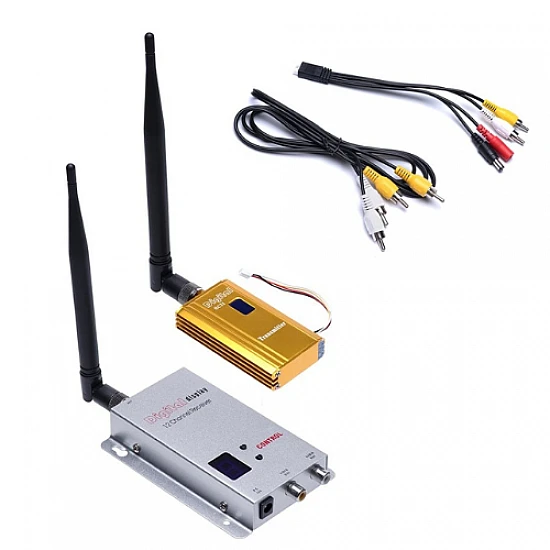

Package Includes:

1 x Transmitter

1 x Receiver

2 x Antenna

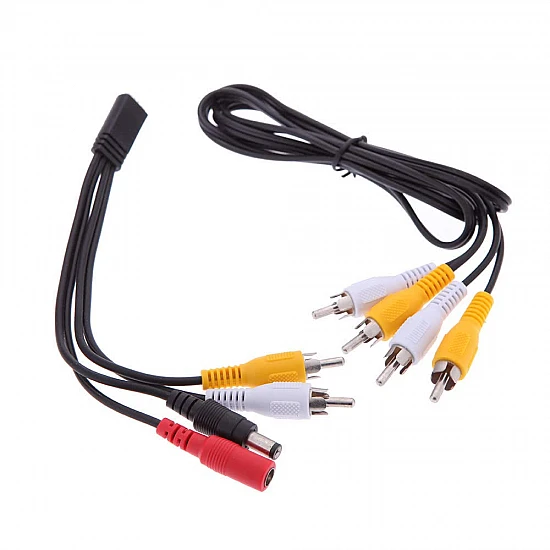

1 x Transmitter Converting AV cable.

1 x Receiver Converting AV cable.

Technical
Antenna Type

SMA Male

Operating Temperature Range

-40°C to +80 °C

Type

8CH Transmitter and 12CH Receiver
