- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-636
(Excluding 18% GST)
OLED (Organic Light-Emitting Diode) is a self-light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

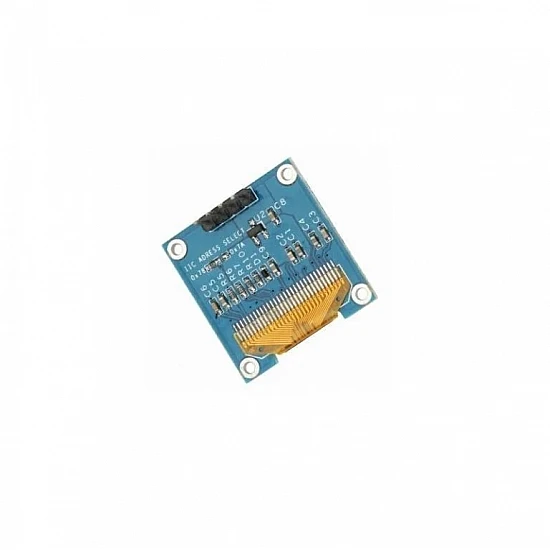

This 0.96″ I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.
Features :
- No need of the backlight
- The display is self-illuminating
- Power requirement is low
- They are offering the large viewing angle
Package Includes:
1 x 0.96 Inch I2C/IIC WHITE OLED Display Module 4pin
Technical | |
Display Area | 2.174 x 1.086 cm |
Display Size | 0.96 inch |
Interface Type | IIC |
Operating Temperature Range | -40º ~ 70º C |
Pixel Color | White |
Resolution | 128 x 64 Pixels |
Voltage | 3.3-5V |
Dimensions (LxWxH) | 2.7x2.7x0.6 cm |
