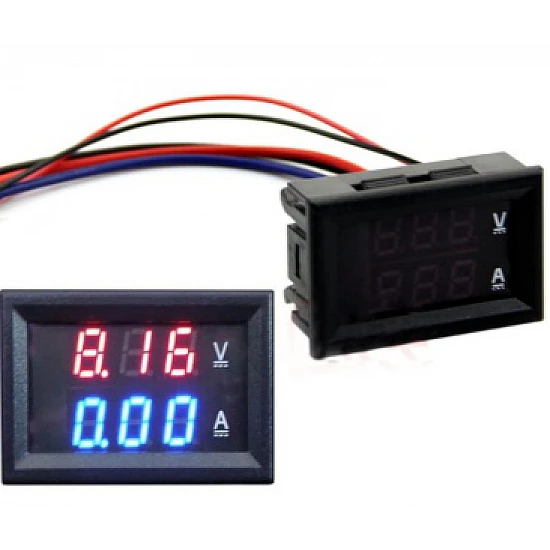

0.28inch DC 100V 50A LED Digital Voltmeter Ammeter with Shunt
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-684
₹347
7 or more ₹336
30 or more ₹331
(Excluding 18% GST)

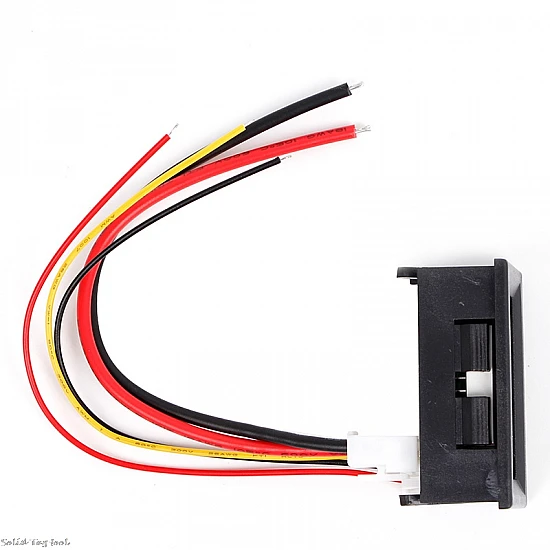

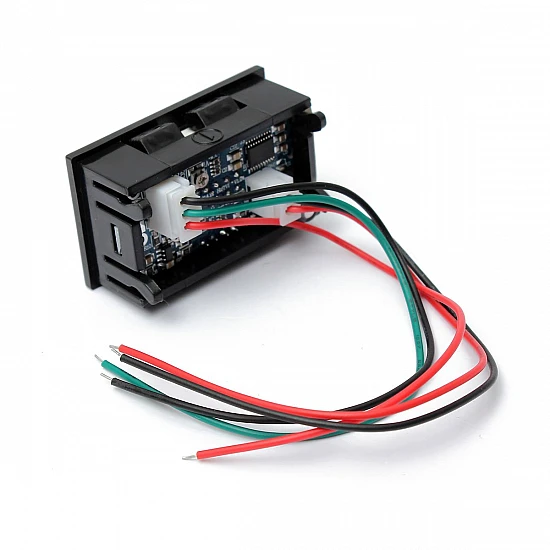

0.28inch LED Digital Voltmeter Ammeter DC 50A Meter will measure up to 100 VDC with a 0.1-volt resolution. This meter has 2 wiring harnesses, One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Another is a 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.
Features:
- Brand new and high quality.
- It measures up to 100V and 50A DC.
- Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
Package Includes:

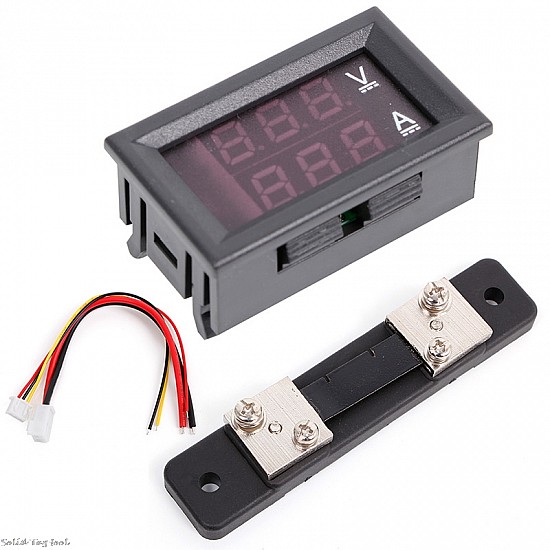

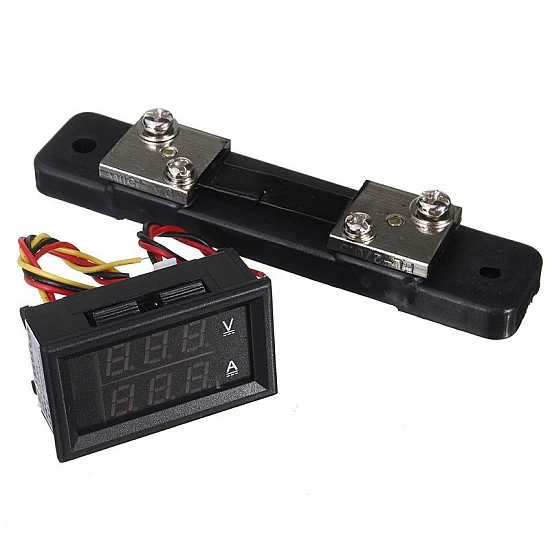

1 x 0.28inch DC 100V 50A LED Digital Voltmeter Ammeter with Shunt.
1 x Current Shunt.
Technical | |
Accuracy | 1 |
Current Testing Range | 0-50A |
Current consumption | 60 mA |
Operating Temperature Range | -10°C to 60°C |
Operating Voltage | 5 VDC |
Refresh Rate | 500ms |
Shunt Dimensions | 120mm x 25mm x 18mm |
Voltage Detection Range | 0V-100V |
Length | 30 mm |
Height | 20 mm |
Width | 50 mm |
