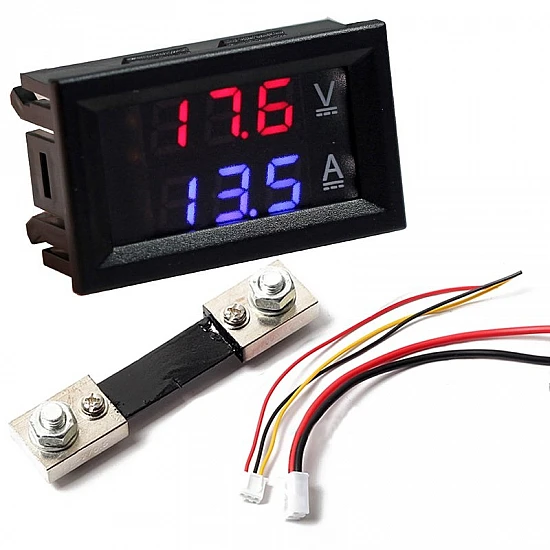

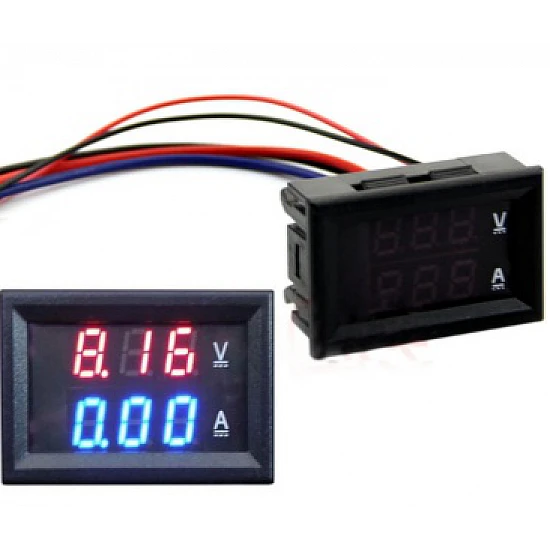

0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt

0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹496
7 or more ₹475
30 or more ₹464

(Excluding 18% GST)

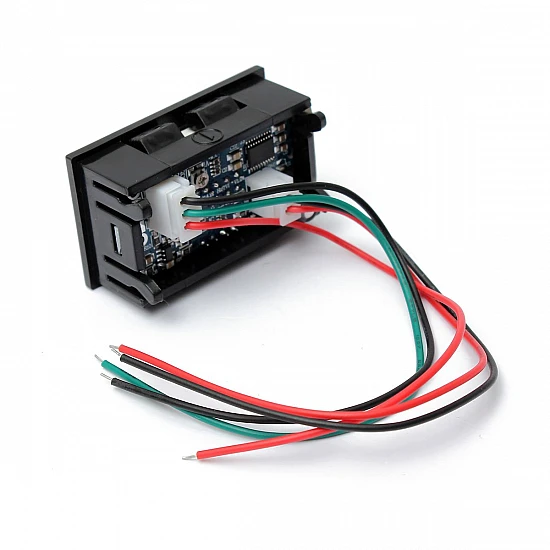

0.28inch LED Digital Voltmeter Ammeter DC 100A Meter will measure up to 100 VDC with a 0.1-volt resolution. This meter has 2 wiring harnesses, One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Another is a 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.

Features:

  • Brand new and high quality.
  • It measures up to 100V and 100A DC.
  • Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.

Package Includes:

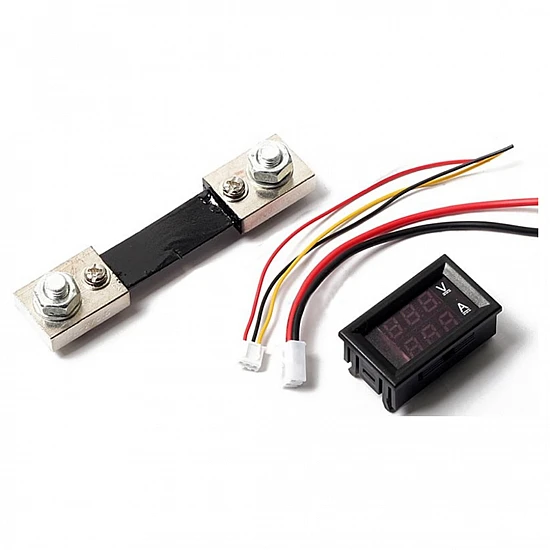

1 x 0.28inch DC 100V 100A LED Digital Voltmeter Ammeter with Shunt.

1 x Current Shunt.

Technical
Accuracy

1

Current Testing Range

0-100A

Current consumption

60 mA

Operating Temperature Range

-10°C to 60°C

Operating Voltage

5 VDC

Refresh Rate

500 ms

Shunt Dimensions

104mm x 22mm x 24mm

Voltage Detection Range

0V-100V

Length

30 mm

Height

20 mm

Width

50 mm
